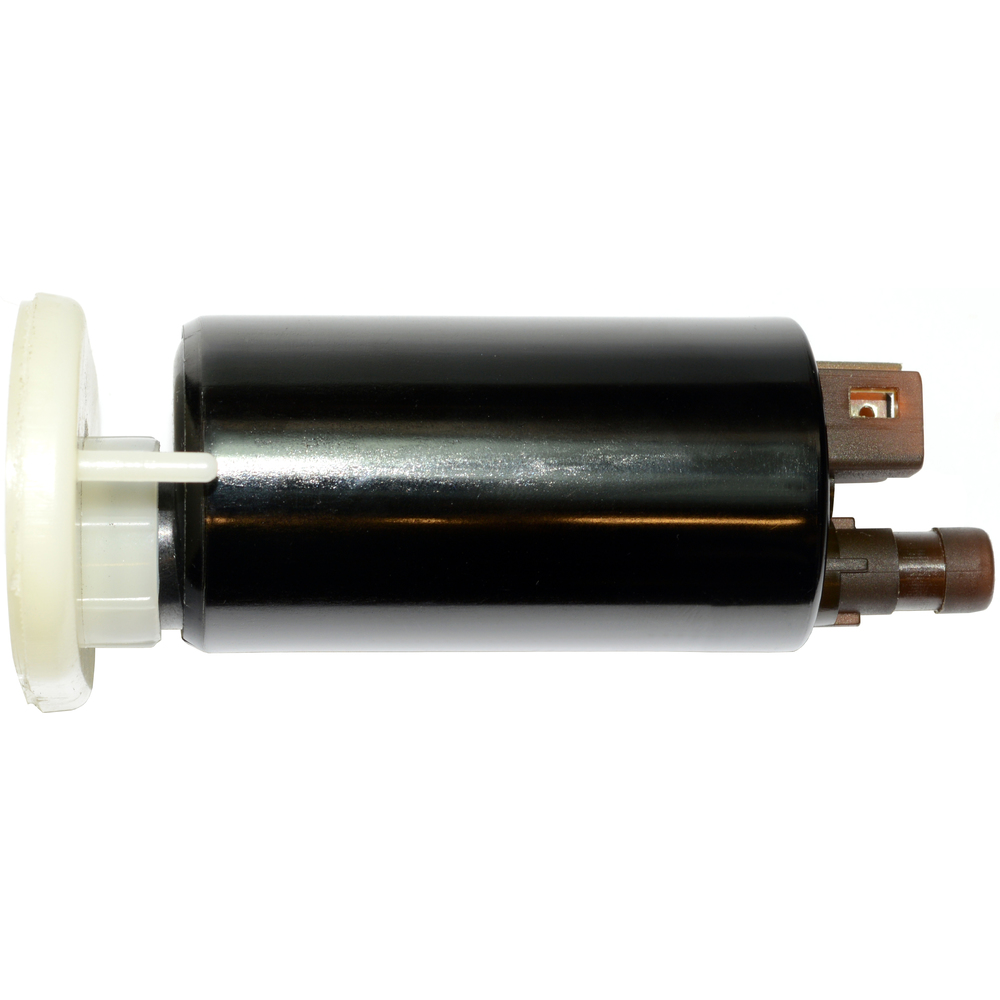

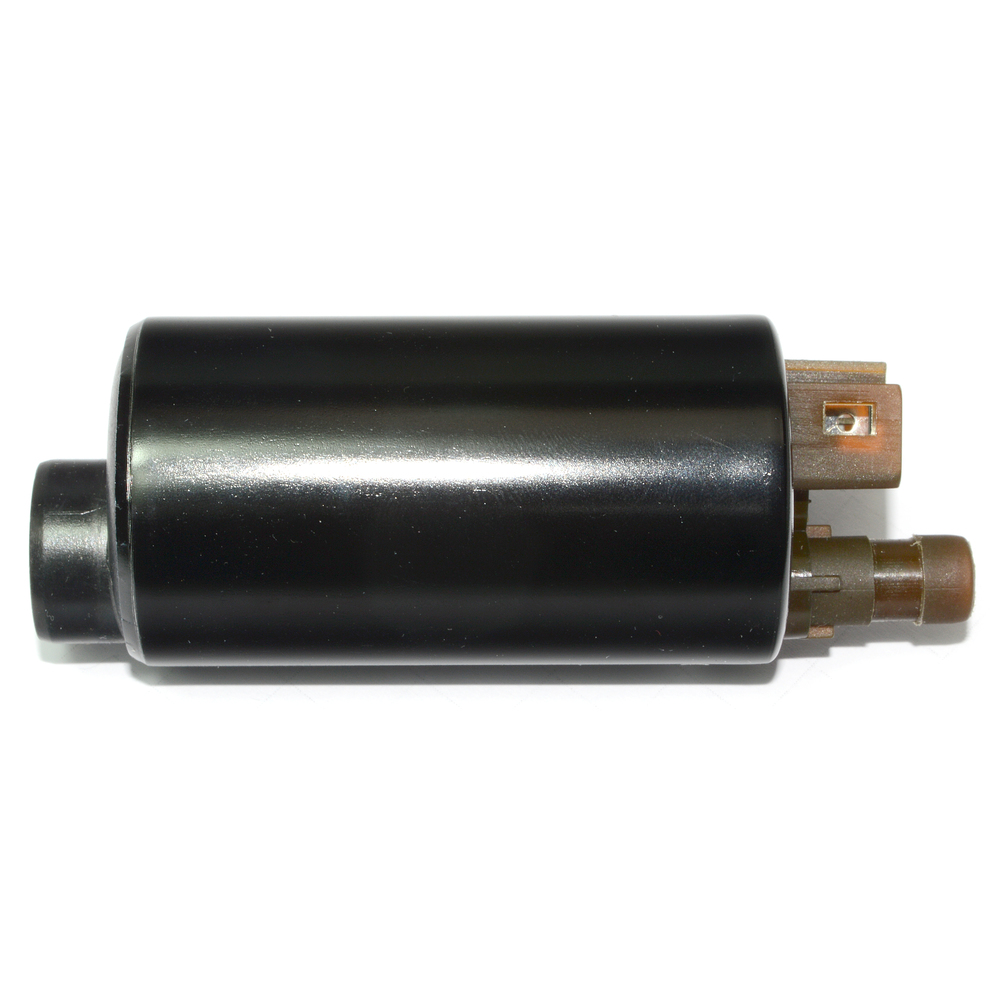

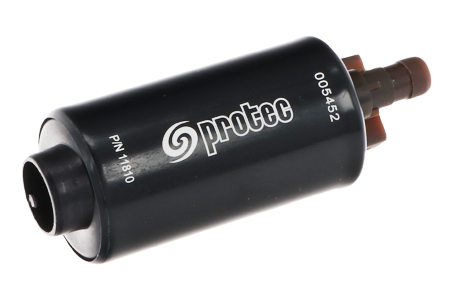

11810 – Low Pressure Lift Pump LPVW
Product Code: 11810
£53.72
Specification
| Name | Value |
|---|---|
| Flow | 185 ltr/hr @ 0.21 bar (3-4 psi) |
| Weight | |
| External Materials | Black Anodised Aluminium |
| Inlet Fitting | 19mm OD |
| Outlet Fitting | 9mm OD (11810) or AN-6 (11855) |
| Impeller Design | Composite |
| Terminal Post | Spade Terminal OE Fitment |
| Min Voltage Input | 6 vdc |
| Max Voltage Input | 18 vdc |
| Current Draw | 1.25 amps (13.8vdc) @ (2-3 psi) |
Description
Race proven lift pump solution.
Compact 36mm body Low Pressure lift pump,
185ltr/hr open flow
Unique serial number,
Fully traceable
Suitable for most popular race fuels Suitable for E15 Quiet and reliable impeller
Available with AN-6 Male (JIC-6) Outlet (11855), 3/8 Male SAE (11856), 5/16 Male SAE (11857)
See filter section for 19mm filters that are compatible with this product
direct replacement for VDO PU-AC-020
11810 Low Pressure Lift Pump LPVW datasheet 195.10 KB
Application Hints
Ensure fuel is always clean and filtered
Check filter is replaced or cleaned at regular intervals
